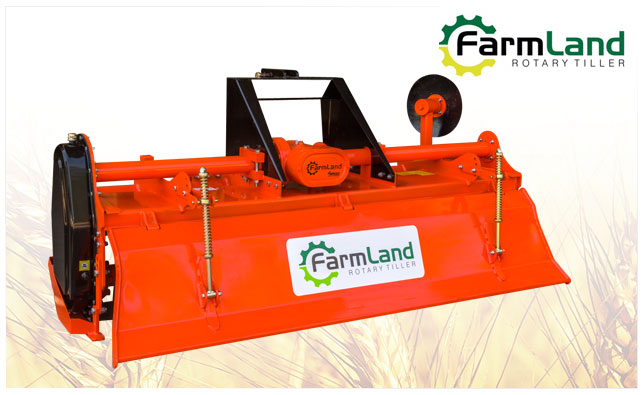

ROTAVATOR
best quality rotavator
Advantage

Farmland rotavator has been designed to work in both soft & hard soil conditions. Its unique design allows it to operate with minimum vibration in the field as well as less operating load on the tractor , So automatically decreasing the consumption of fuel. farmland rotavator using four speed gear box.
Farmland rotavator using double sealed bearing providing better protection from dust and wet soil application. MULTI SPEED GEAR BOX ALLOWS THE USES TO CONFIGURE THE ROTAVATOR FOR OPTIMUM OPERATION AS PER REQUIREMENTS BY CHANGING THE BACK Gear configuration, The helical arrangements of blades allow for better cutting of soil helping in the better pulverization. The working depth is adjustable from the side skid assembly from 3" to 8".

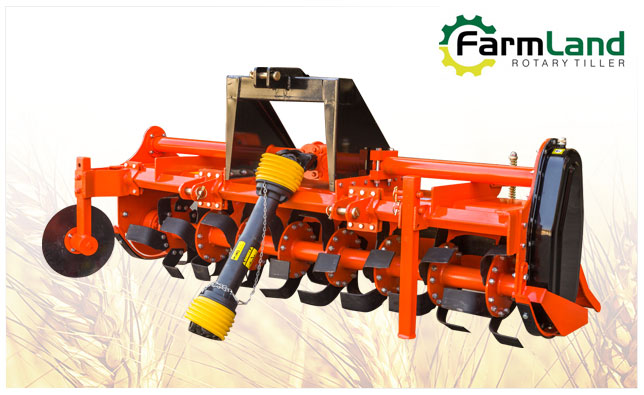

ROTAVATOR
rotavator manufacturers
Salient Features :
»

Multispeed Gear box compatible with both 540 & 1000 rpm.
»

Blade made of special born for extended life and better quality.
»

Helical blade arrangements for better efficiency and result.
»

Heavy trailing board with spring shock absorbers.
»

Adjustable depth skid to active more tilling depth.
»

Hardened gears for longer life and smooth operations.
»

Side disc available.
»

PTO shaft with shear bolt to avoid overload on gear & tractor.
»

Double seal pre lubricated bearing to avoid damage caused by mud & water.
»

Special high tensile fasteners.
»

Gear box used 4 - speed.
»
 Unique design, compatible with majority of tractor models.

Specifications
Sr.
 Description
DM-RT 150 (5 Feet)
DM-RT 175 (6 Feet)
DM-RT 200 (7 Feet)
DM-RT 225 (8 Feet)
1
 Tractor Power
35-45 HP
45-55 HP
55-65 HP
65- Above
2
 Over all Width
175 cm
200 cm
225 cm
250 cm
3
 Tillage Width
150 cm
175 cm
200 cm
225 cm
4
 Gear Box
Multi/Single Speed
Multi/Single Speed
Multi/Single Speed
Multi/Single Speed
5
 Side Transmission
Gear drive
Gear drive
Gear drive
Gear drive
6
 PTO Speed
540/1000 rpm
540/1000 rpm
540/1000 rpm
540/1000 rpm
7
 Rotor Speed
162-230 rpm
162-230 rpm
162-230 rpm
162-230 rpm
8
 No. Blade
36
42
48
54
9
 Gear Box Over Load protection
Shear Bolt
Shear Bolt
Shear Bolt
Shear Bolt
10
 Tptal wt. ( Without PTO & Oil )
438 Kg
468 Kg
498 Kg
528 Kg

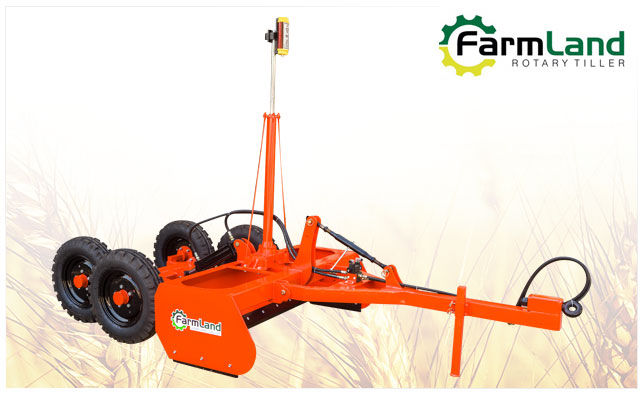

land leveller
Land leveller manufacturers
MACHINE CONTROL SYSTEM TO BE MOUNTED ON TRACTOR CONSIST OF:
»
 Receiver to be mounted on a electric operated power mast directly attached to bucket: High precision: ±1mm/ Normal precision: ±2mm, Operating temperature: -20˚C / -4˚F to +50˚ C / 122˚ F, Water and dust resistance: IP65
»
 Control Box: LED display with for manual and automatic control
»
 Power cable for powering system from tractor power (12Volt).
»
 Cable connects laser Receiver to control box (Auto Panel)
»
 Cable connecting Control Box (Auto Panel) to Valves of tractor for Hydraulic control.
LASER TRANSMITTER UNIT MOUNTED ON TRIPOD CONSIST OF:
»
 Rechargeable Battery: Save time & money.
»
 Battery Charger: Enable easy o charge in remote location too.
»
 AC power cable foe charger
»
 Tripod: It is light weight, easy to carry & Adjustable.
»
 Rod eye mini sensor: To Survey ground for mounting, checking of laser system by operator before & after leveling.
»
 Leveling Staff / Rod : Used as a telescopic probe with Rod eye mini sensor.
ECO PLANER SCRAPERBUCKET SYSTEM:
»
 Farmland Eco Planer Scraper Bucket is equipped with heavy duty frame with optional type selection tire selection (Single axle two tires& single axle with four tires) of suitable size, complete hydraulic system with cylinders, hoses, valves and laser hook up fitting for automatic operation of scraper bucket.
»
 Bucket Sheet : 8mm thick
»
 Scraping Blade : 125x12 mm
»
 Drawbar : 100x100 & 100x50 Square box
»
 Hydraulic Cylinder : 2 Ton (capacity) with solenoid valve and cables
»
 Height : 560 mm
»
 Width : 2 meter for 50-60 HP
»
 Tire Axle : 45x45 mm Round bar (tapper roller bearing in rim connecting hub)
»
 Tire Size : 6.00x16, 10.0/75-15.3 & 13/55-16 (Optional)

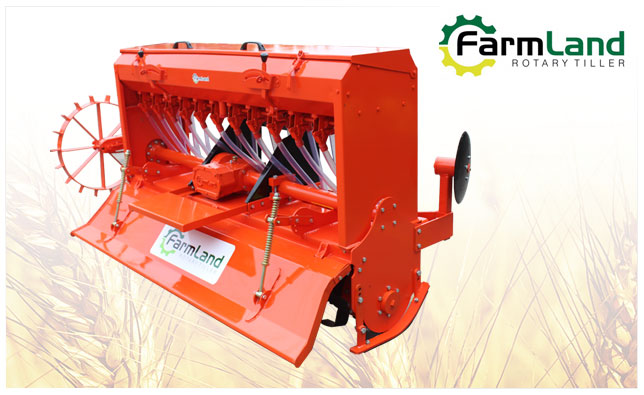

Roto Seeder
Roto Seeder manufacturers
ADVANTAGE OF  FARM LAND   ROTOSEEDER:-
Farm land ROTO SEEEDER is multi purposed earth tilling machine used in the preparation of seedbed & sowing seed into stubbles fields. Roto Seeder helps in proper distribution of seed &fertilzer with broadcasting process, thus provide even mixing into the soil. It is largely suitable for sowing crops like wheat, soya, mustard, maize, pea etc. Also the seed feed-rate can be adjusted with the help of adjusting lever, which allows a great extent of liberty to farmers. It is available with rotary tillers of 5 ft, 6 ft, 7 ft, and 8 ft in size.
FEATURE OF FARM LAND ROTOSEEDER :-
» Save fuel and time.
» Good germination.
» Proper distribution of  seed& fertilizers.
» Crop residue as much helps in moisture & temperature conservation.
»  Improved soil health.
»  Environments friendly

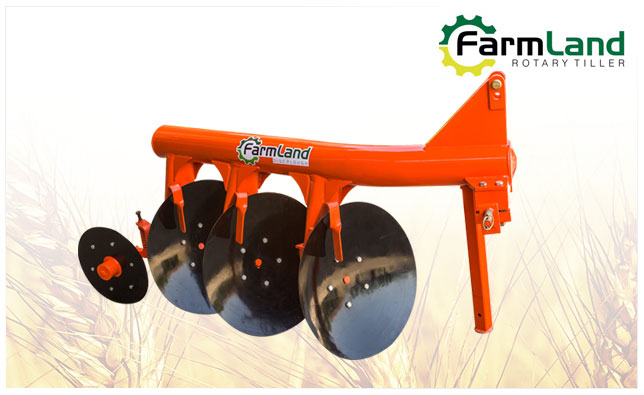

Disc Plough
Disch Plough manufacturers

SIZE

2 BOTTOM

3 BOTTOM

4 BOTTOM

FRAME

 Dia170x 10 Tubular
Rectangular frame

Dia170 x 10 Tubular
Rectangular frame

Dia170 x 10 Tubular
Rectangular frame

MOUNTED

CAT-II

CAT-II

CAT-II

LENGTH

1500 mm

1870 mm

2250 mm

WIDTH

1110 mm

1235 mm

1360 mm

HEIGHT

1100 mm

1100 mm

1100 mm

DISCS

660 x 4 mm Boron steel

660 x 4 mm Boron steel

660 x 4 mm Boron steel

DISCSPACING

445mm

445 mm

445 mm

COLTER DISC

455 x 6 mm boron steel

455 x 6 mm boron steel

455 x 6 mm boron steel

SCRAPPER

6 mm adjustable

6 mm adjustable

6 mm adjustable

BEARINGS

2 Nos. Taper roller

2 Nos. Taper roller

2 Nos. Taper roller

WIDTH OF CUT

500 - 550 mm

875 - 925 mm

1150 - 1200 mm

REQUIRED TRACTOR

40 - 45 HP

50 - 60 HP

70 - 80 HP

APPROX.WEIGTH

270 Kg.

360 Kg.

450 Kg.
